DZ 500

Straightening and Bending Machine DZ 200
magnify

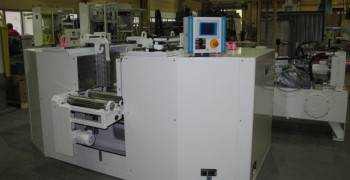

Straightening and Bending Machine DZ 200

Straightening machine for cambering steel profiles providing a special advantage: the design of two opposite cylinders saves one turning of the workpiece

PRESS FOR STRAIGHTENING AND CAMBERING OF STEEL PROFILES

The heavy-duty DZ 500 press by Kunkel is a straightening press for straightening and cambering of steel profiles. It is capable of reaching a pressure force of up to 500 tons and is equipped with a 75kW motor. For this press our engineers focused on achieving a most efficient straightening process resulting in the design of two oppositely positioned cylinders. Turning of the workpiece, typically required with other designs, thus becomes redundant. Our know-how – your advantage

The DZ 500 straightening machine is particularly suitable for industrial applications engaged in serial production in a rather homogenous product area.

Bending capacity available upon request. Straightening capacity available upon request.

Technical Data

Compressive force 5.000 (500 t)
Adjustable from 0-5.000 kN
Cylinder stroke n. Spez. 300-1.000 mm
Clearance 300-1.200 mm
Motor power 75 kW
Operational pressure Max. 300 bar
Tool height 200-800 mm
Dimensions (LxWxH) depending upon design
Weight 20.000 kg



Included Control

20140912094353_20140410102105_Schubert_M_03 2_800x600-aspect-wr.350x180-crop.JPG
Straightening and Bending Machine DZ 200
magnify

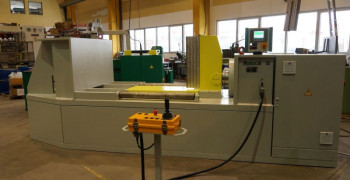

Straightening and Bending Machine DZ 200

Double cylinder straightening and bending machine for automotive, railway car and steel construction industry, powered roller conveyor, powered adjustment of straightening block

Downloads

application/pdf; charset=binary

DZ 500

PRESS FOR STRAIGHTENING AND CAMBERING OF STEEL PROFILES

3,2 MB
