URM 80 D
Total View of Straightening and bending machines URM 80 D
STRAIGHTENING AND BENDING MACHINE
Technical Data
| Compressive force | 800 kN (80 t) |
| Adjustable from | 0-800 kN |
| Cylinder stroke | 350 mm |
| Clearance | 400-570 mm |
| Motor power | 7,5 kW |
| Operational pressure | 315 bar |
| Bending capacity | 300 x 25 mm at V160, 300 x 32 (34) mm at V 200 |
| Straightening capacity Wy | 800 with a distance of 1,500 mm to the straightening block |
| Tool height | 300 mm |
| Dimensions (LxWxH) | 1.900 mm x 900 mm x 1.250 (2,100) mm |
| Weight | 3.000 kg |
matching products
Accessories for the URM Line
Wear plate on the table, control panel on a pivot arm support rollers mounted on the side, straightening beam „Vario“ up to 3 inches pipes
Flat Strip Material Bender
A piece in the bending process

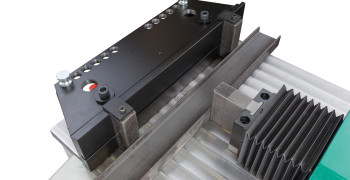

Straightening Beam on the URM 80 D
Straightening beam „Vario“ showing the straightening side, the other side is used for pipe bending
Straightening
Straightening in process with the „Vario“ beam
Straightening Beam
Side for pipe bending „Vario“ straightening beam with hinge bearing for bending pipes
Round Stock Material Bender
Round stock material bender, adjustable with exchangeable rolls for various material diameters
Bending Round Stock Material
Bending of round stock material without pressure marks
Flat Strip Material Bender
Bending tool for flat strip material, bending over the high edge
Short Blade Punching Tool
Bending of closed shapes by using the short blade punch
Short Blade Punching Tool
Delem Control
