Mini Bend 10

Straightening and Bending Machine MiniBend 10

magnify

Straightening and Bending Machine MiniBend 10

Machine with standard press brake tool set-up

STRAIGHTENING AND BENDING MACHINE FOR BEGINNERS

This bending machine offers unlimited workspace also for complex parts as a result of its unique design feature of the built-in working cylinder under the working table. The MiniBend 10 is small, compact, and affordable; the ideal machine for light-duty bending and straightening needs.

Technical Data

Compressive force	100 kN (10 t)
Adjustable	0-100 kN
Cylinder stroke	150 mm
Clearance	200 mm
Motor power	1,1 kW
Operational pressure	260 bar
Bending capacity	100 x 10 mm at V 60
Straightening capacity	light-duty work pieces
Tool height	100 mm
Dimensions (LxWxH)	1.000 mm x 650 mm x 1.100 mm
Weight	350 kg

matching products

Bending

Profile straightening

Straightening

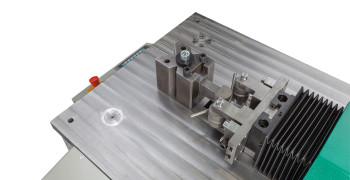

Flat Strip Material Bender

magnify

Flat Strip Material Bender

Bending tool for flat strip material, bending over the high edge

Flat Strip Material Bender

magnify

Flat Strip Material Bender

A piece in the bending process

Straightening Beam on the Mini Bend 10

magnify

Straightening Beam on the Mini Bend 10

The straightening beam „Vario“ is showing the straightening side, the other side is used for pipe bending

Straightening

magnify

Straightening

Straightening in process with the „Vario“ beam

Bending Round Stock Material

magnify

Bending Round Stock Material

Bending of round stock material without pressure marks

mod1

Downloads

application/pdf; charset=binary

MINI-BEND 10

STRAIGHTENING AND BENDING MACHINE FOR BEGINNERS

Kunkel_Richtmaschine_Biegemaschine_MiniBend_eng

3,6 MB

open

download
